Our hot air stenter can be used in applications like dyeing, heat setting, curing, finishing, coating in fabric styles cotton, polyester, woolen, viscose, nylon, aramid etc..Its speed range is 50-100-150m/min.Nominal width - 1800, 2000, 2400, 3200 other widths on demand. Minimum width is 600mm.

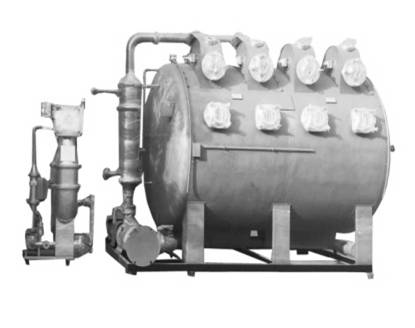

Our soft flow is more reliable & robust in construction and it has ease in operation, suitable for fabrics like knits & woven fabric, terry towel, furnishing, lycra, polyester, cotton etc. It features in its capacity from 5kg to 2000kg in variation permutation combinations, high volume low pressures pump with inverter. Teflon/plaiterat rear side for entangle free fabric movement fully auto with plc based dosing.
Capacity is from 50 to 350 kgs. Less Liquor Ratio. Less Electricity. Less Thermic Energy. Less Chemical / Colours. It is designed to operate very soft Dyeing on both knitted and woven fabric constructions of varying qualities. Less Pollution. Less Price. More Safety. High Production. Less Maintenance. No Creacking Problem. High Fabric Speed
Drum washing technology for tomorrow is what we offer, today which has range of washing, dyeing & processing machines. Drum washing without bag. Front loading large door opening with strong door hinges & 180 degree opening makes front loading easy.Capacity available 100 kg. Fabric to 400 kg. / batch. Maximum operating pressure up to 3.5 kg. Per sq. Cm. Maximum operating temperature 140 degree centigrade. Even heating throughout the process controlled by micro processor (programmable).Auto temperature control for steam & water by electrically operated of Solenoid Valves. Synchronize drum rotation in forward & reverse direction. Additional inspection and sight glasses provided to view the internal Process. Safeties like valve & pressure switches provided.
We have semiautomatic dyeing jigger, semi-automatic jumbo jigger, heavy duty dyeing jigger with SS structure, Semi-automatic jumbo jigger(for bleaching), semi-automatic maxi jigger, fully automatic maxi jigger, having roll center 31"c, 36"c, 41"c ,46"c , 48"c, and capacity(250gsm)- 350kg,500kg,750kg, 1000kg,1500kg,Batch dia. - 900mm, 1100mm, 1300mm, 1500mm, 1600mm. available width - 48" to 150" roller width.

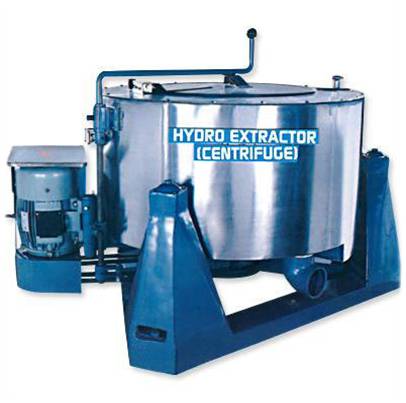

This machine is designed for growing need of textile processing industries. Construction is robust, isolating suspension pendulum , ensures smooth and vibration free operation.
Our machine has compact and attractive design,highly productive-handy operate.These are available in 41" tp 145" table size.Normal height of heap is 15". Fabric speed 50/6. Meters per minute.Versatile - its able to handle all kinds of fabric.Speed 0-50 mtrs./min. (Infinitely variable DC drive). Working widt : 1800. Max. Fabric length : 50 mtrs. Electric power : 2 HP. Supply needed : 220 W, 50 Hz
Clients can avail from us a huge variety of high quality Fabric Inspection cum Rolling Machine, which is sourced from the reliable vendors of the market. The use of state-of-the-art technology and latest machinery at the manufacturers' end, ensure the excellence & applicability of our range of this durable machine.
Working speed variable 0 - 50 mtrs./min. breaking system for stopping the machine in case of emergency. automatic control of the fabric tension machine frame in mild steel construction with tie-bars, guide roller deposit board. Inclined inspection table for comfortable visual inspection .Mechanical counter meter. Reversing for full length. Various fabric input & output options. Working Width is 1150 to 4000mm.The inspected roll - 400mm. Electric Power : 2 HP Two Motor, Supply : 220W, 1 Phase, 50 Hz . Our machines can be tailor-mode to the requirements of your processing needs.
Our infrared dyeing machine is available in 12x100cc or 12x250cc with variable speed model with imported inverter.Flexible beaker carriage suitable to adopt beakers of various capacities in the same carriage.It has the facility of auto cooling and accurate temperature control.

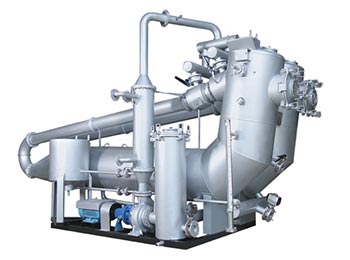

Our long tube soft flow is suitable for fabric types Knits, Nylon, Wooly, Rayon, Silk and surface sensitive fabrics. This is designed to process 60GSM to 200 GSM fabric. Its speed is up to 200 mtrs. / min .Maximum chamber capacity is 100/150/200 Kgs. Maximum Temp 98 degrees for atmospheric soft/overflow + jet dyeing. We can provide optional water storage tank with machine to reduce process cycle time. Ideal for Lycra, Cotton, Viscose, Micro, Polyester, & Blends.
